vibration meter

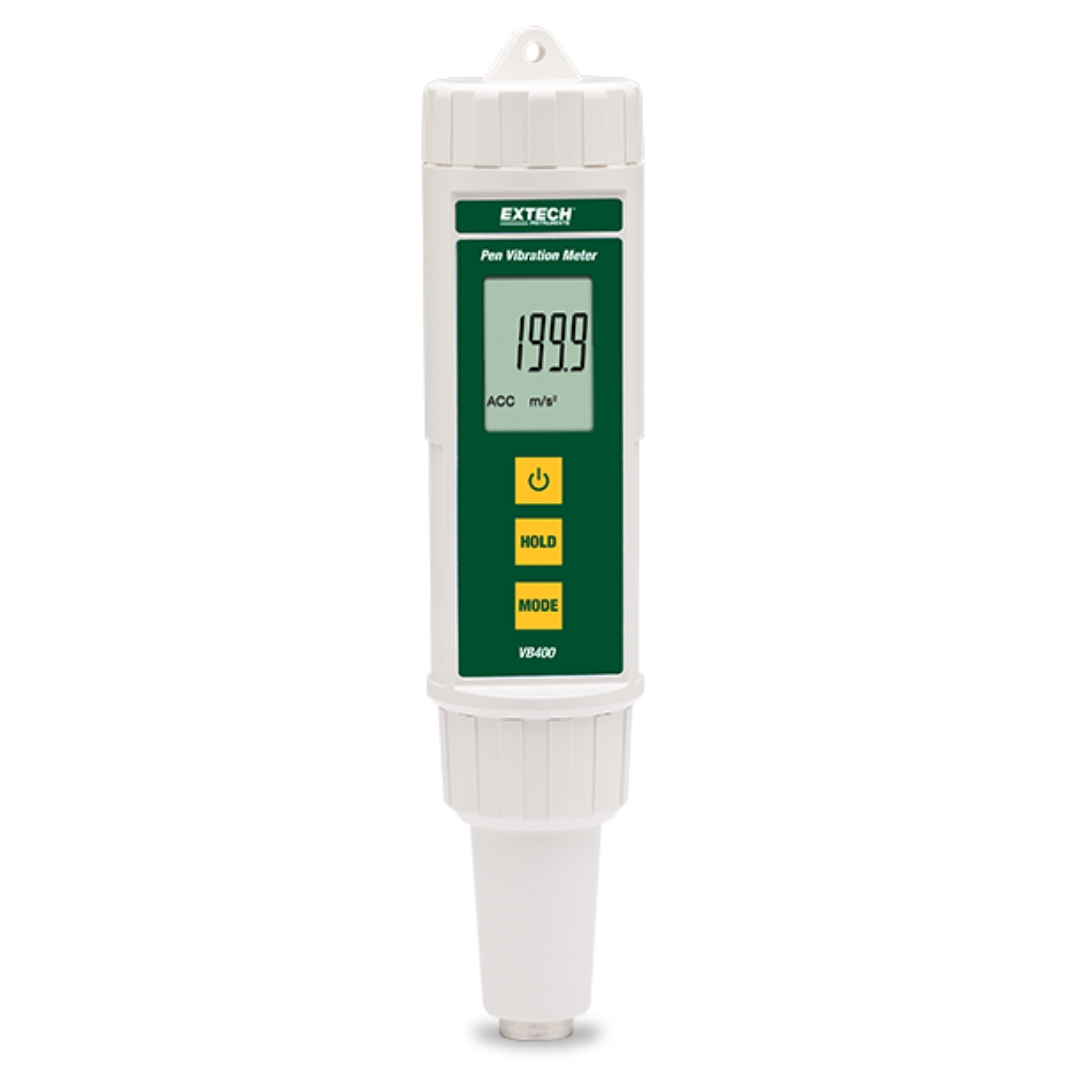

Extech VB400

The Extech VB400 Pen Vibration Meter is designed to provide easy and accurate velocity and acceleration measurements on industrial machinery. Its measures RMS Acceleration and Velocity with metric and imperial units of measure. The VB400 has a wide frequency range from 10 Hz to 1 kHz and basic accuracy of ± (5% + 2 digits). Additional features include zero adjustment, data hold, and a low battery indicator. Water and dust resistant to IP65. Complete with test pin tip, magnetic base, 4 AAA batteries, and pouch case.

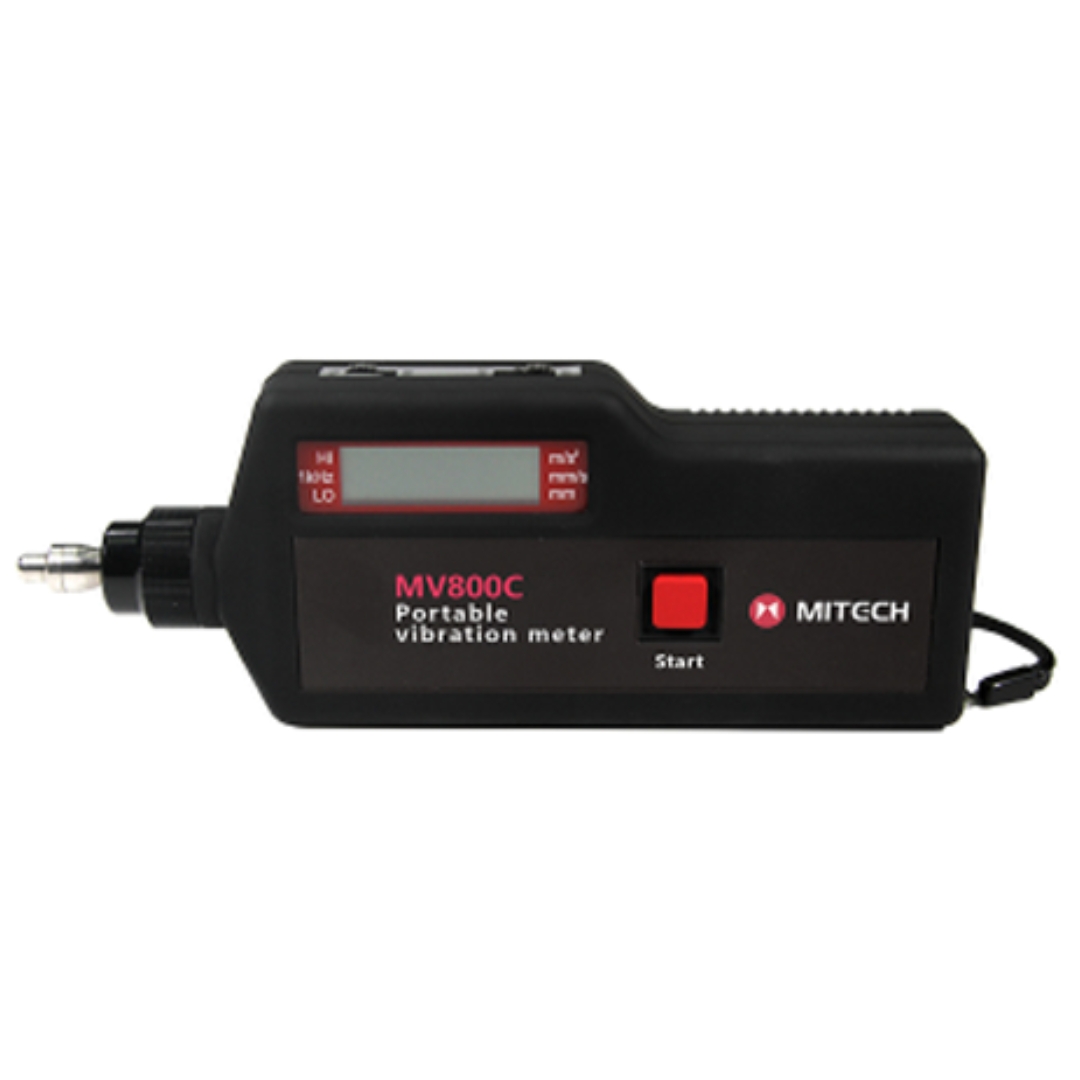

Mitech MV800C Vibration Meter

MITECH portable vibration meter MV800C is made up of piezoelectric transducer and digital display circuit. It is mainly used to measure vibration acceleration, speed and displacement of various rotary machine. This product has the advantages of large measurement, wide variety, intuitively demonstration, small size, light weight etc. It is widely used in measurement on site or at height and can reduce the working strength, improve the working efficiency.

Rion VM-63C Vibration Meter

The Rion VM-63C Digital Vibration Meter is a vibration measuring device that is very easy to use and is designed for maintenance and checking on industrial machines, especially rotating machines. The integrated accelerometer and digital display eliminate the need for any cables, making on-site measurements easy and fast. It can be held in one hand and operated with a single button, combining exceptional comfort with complete measurement control.

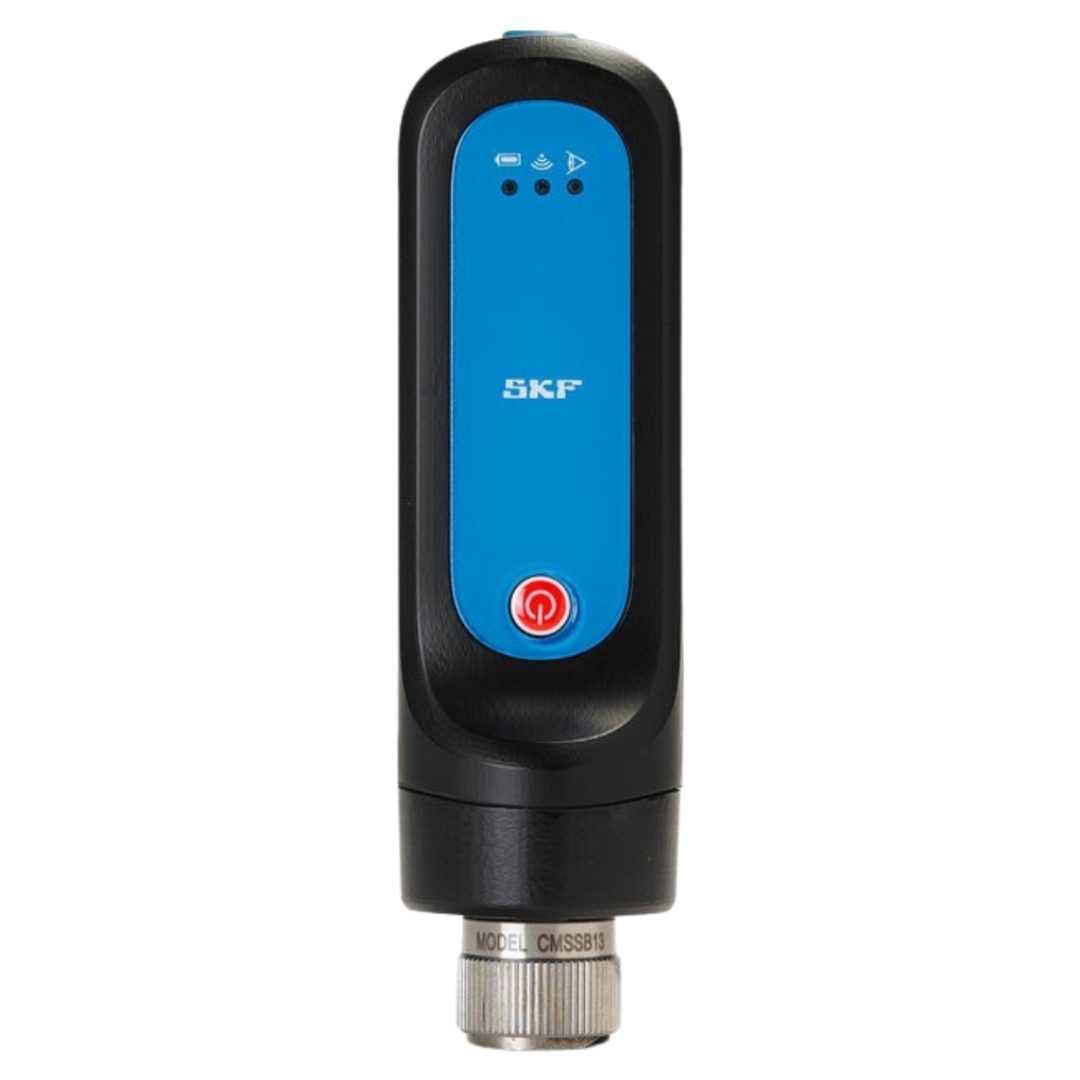

SKF QuickCollect sensor CMDT 391-K-SL

SKF QuickCollect sensor kit This sensor is an easy-to-use, Bluetooth-enabled handheld sensor that connects to apps that work with both iOS and Android tablets and smart phones. Combining vibration and temperature sensing, overall data can be viewed on the spot in real time or pushed to the cloud for future analysis. The sensor is ideal for service, reliability, operations, or maintenance personnel as part of a walk-around data collection program. - Easy-to-use, handheld vibration and temperature sensor - Requires minimum training and experience - Provides instant feedback on vibration and temperature - Enables early identification of developing rotating machinery issues - Cost-effective and scalable entry-point for reliable rotation

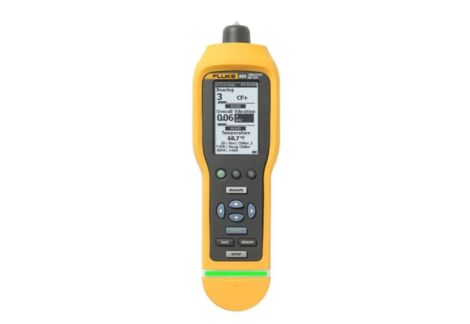

Fluke 805 Vibration Meter

Fluke 805 vibration meter measures overall machine vibrations, bearing vibrations and temperature simultaneously. In order to ensure measurement repeatability, the device makes use of an innovative sensor that checks the force applied to the tip before the vibration measurement starts. The overall vibrations levels are compared to pre programmed alarm levels and machine condition is provided in four stages. Bearing condition is assessed automatically with crest factor plus parameter. With the use of this parameter it is not needed to know the shaft diameter and rotational speed of the bearing, neither the bearing class. Temperature measurements are conducted touchless with an infrared sensor. All measured values can be stored and exported to an MS Excel template to create trend plots that help to predict the machine- and bearing condition The unit has an audio out for listening to machine noise and a LED light torch to make dark measurement spots visible.

TPI 9070 Smart Vibration Analyzer

Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU). ISO Built-in Alarms Easily identify bearing problems with BDU Reading 800 line FFT (spectrum) Ruggedized IP67 case 3-year Limited Warranty The 9070 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically per-forms vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness. Full Color OLED Display Easily identify problems with built in band filters: 1X (unbalance) 2X (misalignment) 3X (looseness) Built-in accelerometer with stinger. Optional long stinger and magnetic mount available
