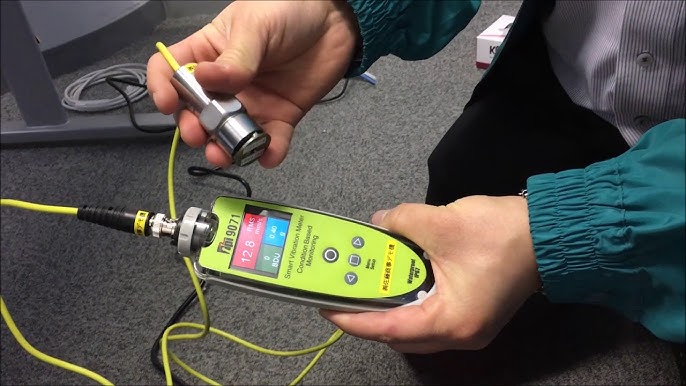

TPI 9071 Smart Vibration Meter
The TPI 9071 analyzes & interprets readings: ISO machine alarms and BDU reading indicate overall machine and bearing condition; clear picture of machine problems detects imbalance, misalignment and looseness; 800-line spectrum with zoom and cursor to identify complex issues.
| Model 9071 Specifications | ||
|---|---|---|
| Size | H 7.95″ W 2.36″ 200 mm x 60mm x 26mm | |
| Weight | 9.8oz (280g)(not including magnet) | |
| Environmental | * Water: IP67 Waterproof * Operating: 32°F to 122°F (0°C to 50°C) * Storage: -4°F to 158°F (-20°C to 70°C) |
|
| Power Supply | 2xAA batteries | |
| Battery Life | Approximately 50 hours of normal use | |
| Frequency Ranges | 2/10Hz – 1kHz ISO 2Hz – 10kHz Total g 1kHz – 10kHz Bearing Analysis |
|
| Frequency Resolution | 100 / 800 lines | |
| Displayed Amplitude Units | Acceleration in g Velocity in inches per second or mm per second Bearing Damage in BDU |
|
| Displayed Frequency Units | Hz, CPM or RPM | |
| Input Range | +/- 50 g (with supplied accelerometer) | |
| Dynamic Range | 72 dB (0.05g resolution) | |
| Auto set up of VA bands | Yes | |
| Measurement Storage | 10 blocks / 20 readings per block | |
| Accelerometer Connection | BNC connector cable with removable magnet (1mV/g – 10,000mV/g) | |
| Reading Storage | 10 blocks/ 20 readings per block | |
| Standard Accessories | A9012 IEPE accelerometer with cable A9073 magnet A9074 Soft pouch |
|
